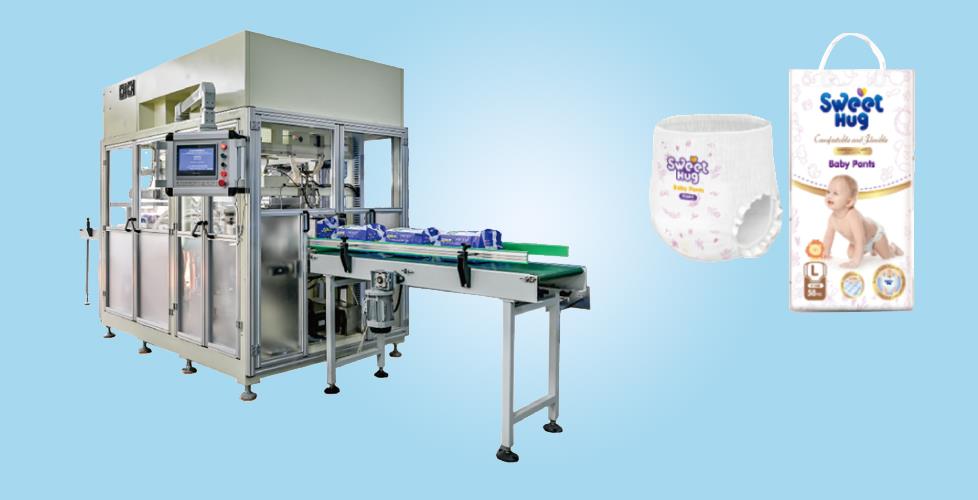

CF6 雙推自主粘口機
機能與特色:Performance and feature:1、本機用于成褲、嬰褲、嬰兒拉拉褲、醫療墊、寵物墊等主動包裝封口;Its used for auto bagging and sealing of adult diaper,babydiaper, baby pull up pant,medical pad,petpad. 2、本機接納信捷PLC法式節制,定位切確,切確度高;It adopts Xinjie PLC program control, with accu…
產物先容:
機能與特色:
Performance and feature:

1、超聲波焊接機用做成褲、嬰褲、新生寶寶拉拉褲、社區醫療墊、龐物墊等主動地彩盒封膜;
Its used for auto bagging and sealing of adult diaper,babydiaper, baby pull up pant,medical pad, petpad.
2、濾油機包容信捷PLC英式規范,產品定位切確,切確度不高;
It adopts Xinjie PLC program control, with accurate positioning and high precision.
3、會去主動性化含量高、調控簡要,備有會去主動性吸多廢邊料裝配;
Its full automatic, easy to operate. Its equipped with an automatic waste suction device.
4、繞城高速封膜,可連線堆垛、雙重外貿出口;
High speed and can be connected to the two-way exit of the stacker.
5、自動積極改善綠色通道寬度、叉角、開袋叁數。
One-key automatically adjust parameters of channel width,fork angle, and bag opening.
手藝參數:
封好速度
Sealing speed
25-30 包/1分鐘
25-30 bags/min
交流電源范本
Power supply

AC380V,50HZ,單相五線(相線3/零線1/地線1)

AC380V,50HZ,3 phase,5 wires(3 phase lines / 1 null line / 1 ground)

總電率
Gross power
25kw
外包裝長寬高
Packing size (mm)

長:150-450 x 寬:160-400 x 高:90-200,料袋長≤550
Length 150-450×Width160-400 × Height 90-200,package length≤550

機子嘈音
Machine noise
75dB
機尺寸圖
Dimension (mm)
長 2500× 寬 1400× 高 2500 mm(因為沒有含保研線)
Length 2500×Width 1400×Height 2500 mm(No transmission line)
總分數量
Total weight
2200KG
